How a BBC navigation bar component broke depending on which external monitor it was on
Recently, my team and I fixed an absolutely bizarre bug that only one person in the team could reproduce. And to make it even weirder, she was only able to reproduce the issue when using her work laptop at home; it worked fine with the same laptop in the office.
So what was the bug? permalink
The BBC's UK website uses a click
event to respond to when a user activates the 'More' button. click
events aren't just activated by the click of a mouse; they can also be activated by touch and the 'enter' or 'space' keys on a keyboard.
Our 'more' button should open a menu. However, when she was clicking on it at home, the click
event didn't seem to do anything. Instead, the menu opened using our no-JavaScript fallback behaviour.
That's strange. 💭
When we looked into it a bit more, we found out that the bug only happened when her web browser window was on one of her external monitors. She had two external monitors and it happened on both. But when she clicked the button on her laptop screen, the button worked as expected.
What? 🤯
And to make it even stranger, the bug didn't happen in Safari.
What? What? What? 🤯 🤯 🤯
So why on earth was something like a user's external monitor set up affecting click
events on our website? And why was this bug not happening to everyone else in our team who used an external monitor? It was very strange indeed.
Reproducing the issue permalink
We wanted to be able to reproduce the bug to properly investigate it, so we needed to understand what it was in her home environment that triggered it.

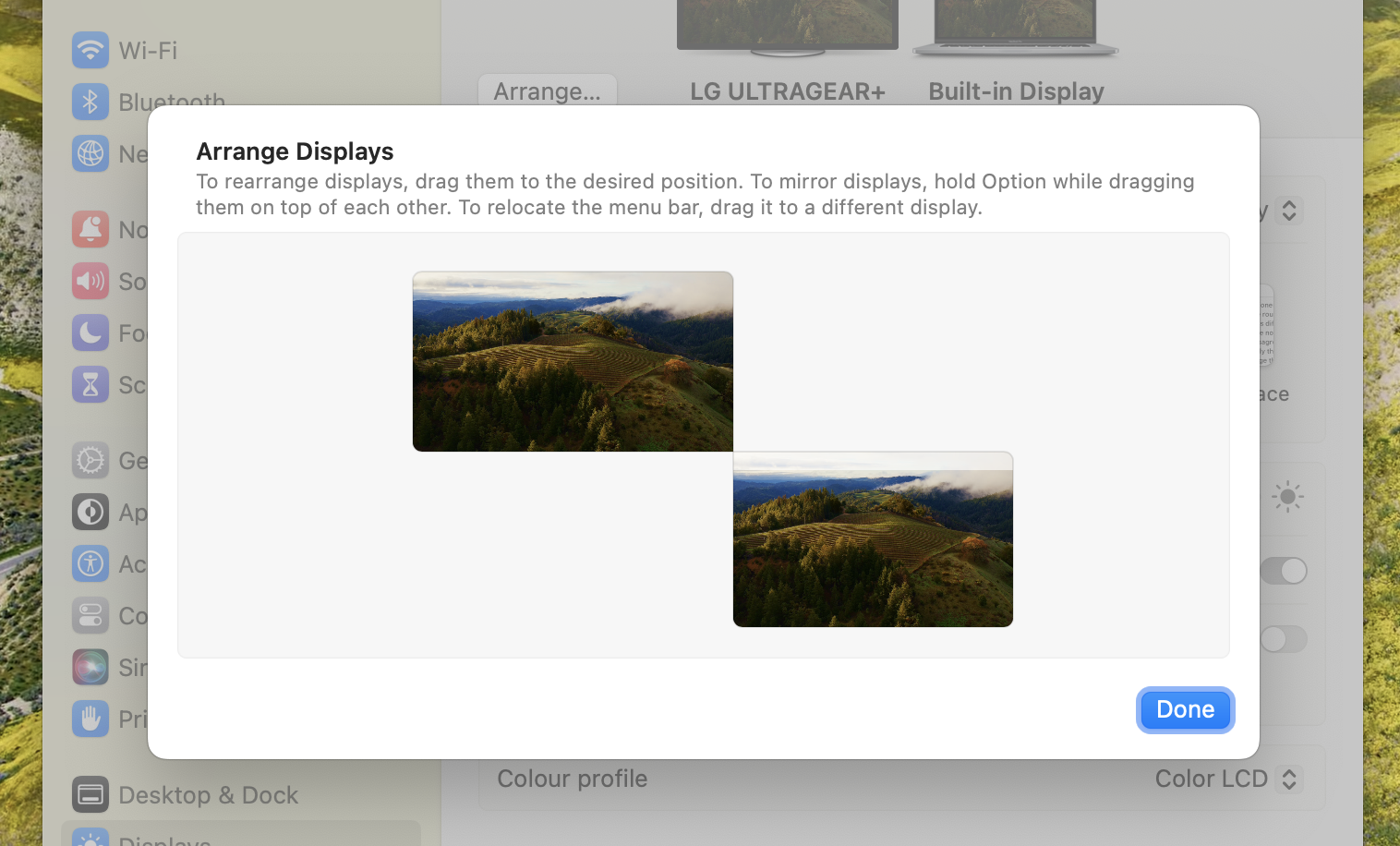

Since the bug only occurred on her external monitors, we noticed that it stopped if she repositioned them in the OS settings. Her external monitors were positioned above her laptop, so once we replicated that arrangement in our OS settings, we were finally able to reproduce the bug, too.
Bingo!
Our investigation permalink
We had two clues to begin our investigation:
- 1st clue: The bug didn't occur on Safari.
- 2nd clue: The bug only happened when the external monitors were positioned above and left of the main monitor.
Our next step was to investigate our 'more' button's click
event handler function.
While reproducing the issue, a console.log
of our 'more' button's click event showed our 3rd clue: that, on Chrome and Firefox, the screenX
and screenY
properties were negative numbers.
Note:
Even though they can be triggered by any kind of input,click
events are a type ofPointerEvent
, so theirevent
objects include information about the mouse or touch pointers that trigger the clicks. For example, thescreenX
andscreenY
properties show the coordinates (in pixels) for what point on the screen gets clicked on.
That surprised me, because I didn't know those properties were allowed to have negative numbers. I checked the DOM UI Events spec to see if that was correct, but there didn't seem to be any specific information about it.
With some Ace Attorney Investigations-style logic, when we put together the fact that the bug didn't occur on Safari and that, on Chrome and Firefox, the screenX
and screenY
properties were negative numbers, we could deduce that browsers have an interoperability issue in how they represent screen coordinates in multi-monitor set ups.
Note:
I ended up reporting the interoperability issue to the WebKit team on WebKit bug 281430.
That knowledge gave rise to our 4th clue: the bug only occurred if screenX
and screenY
were negative.
With some more Ace Attorney Investigations-style deductions, when we combined that with our 2nd clue – that the bug only happened when the external monitors were positioned above and left of the main monitor – we could deduce our 5th clue: on Chrome and Firefox, the screenX
and screenY
's (0,0) coordinate is the top left of the main monitor.
On a multi-monitor set up, browsers' screen coordinate systems treat multiple monitors as if it were one big monitor. So two 800px wide monitors positioned horizontally would have x coordinates ranging of 0 to 1600. On Safari, that range is always a positive number starting from the top left most monitor, but it looks like, in Chrome and Firefox, they are relative to the main monitor instead and use negative coordinates.
We needed to find the click
event handler in our code and see how it was reading the screenX
and screenY
coordinates from the event
object.
This is what we found:
const isInvokedByMouse = event => event.screenX > 0 || event.screenY > 0;
const isInvokedByKeyboard = event => isEnterKey(event) || isSpaceKey(event);
// ...
const toggleMenu = event => {
// ...
if (isInvokedByMouse(event) || isInvokedByKeyboard(event)) {
event.preventDefault();
// Do stuff to open the menu and move the focus...
}
};
The isInvokedByMouse
was checking whether the click
event was invoked by a mouse or touch pointer – rather than a keyboard – by checking if the screenX
or screenY
coordinates were a positive number.
That gave us our final clue: the code assumes click
events invoked by pointers have positive screenX
and screenY
coordinate numbers.
When a user clicked the 'more' button on a monitor with negative screen coordinates, the event handler wasn't acknowledging the click and instead falling back to the default behaviour of the 'more' link.
We could finally finish our investigation. We could deduce from our final two clues the solution: we need to check for negative numbers as well as positive numbers when checking the screenX
and screenY
coordinates.
The fix permalink
As is often the case with bugs, the problem was very complex to figure out, but the solution was very simple.
All we had to do was change the isInvokedByMouse
to check that screenX
and screenY
don't equal 0, rather than checking if they are greater than 0.
const isInvokedByMouse = event =>
event.type === 'click' && (event.screenX !== 0 || event.screenY !== 0);
Now everyone with weird multi-monitor layouts can enjoy the BBC website's navigation bar in peace.
The code is still weird, though. We don't need to be checking for whether the click
was triggered by a mouse or keyboard. We should probably do further refactoring of the event handler function, since it's complicated by the fact that it also handles keydown
events. For now, though, this fix will do just fine.
It's a good lesson around being careful what assumptions you make around how an API works. Even the UI Events specification wasn't clear on whether there could be negative numbers in screenX
and screenY
. Though this code was rigorously tested both in unit tests, Puppeteer and with manual testing on various browsers, devices and assistive technology tools, the bug was never spotted.
So that was fun! Who would have thought web developers could break an experience for users because of which monitor they're viewing the page on?
Edit on 2024-11-19: There's been a lot of responses to this blog post, including confusion around why we're checking something unreliable like screenX
in the first place. That's understandable because it is, indeed, a bit odd and seems like bad practice. I've now refactored the navigation component and significantly changed the 'menu' button's event handler. My next blog post explains how it was refactored and answers some common questions people have had.
